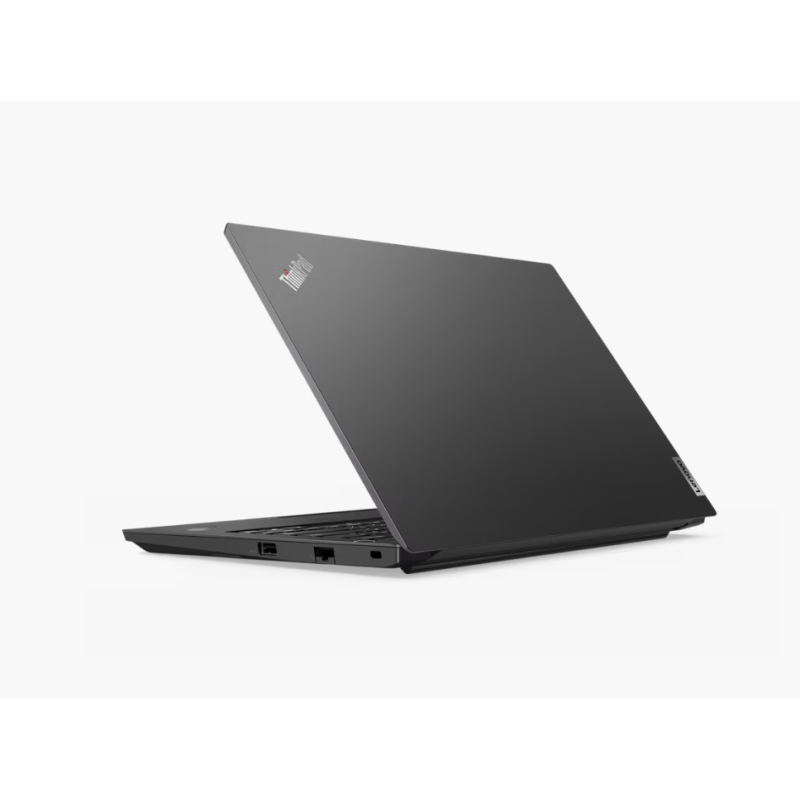

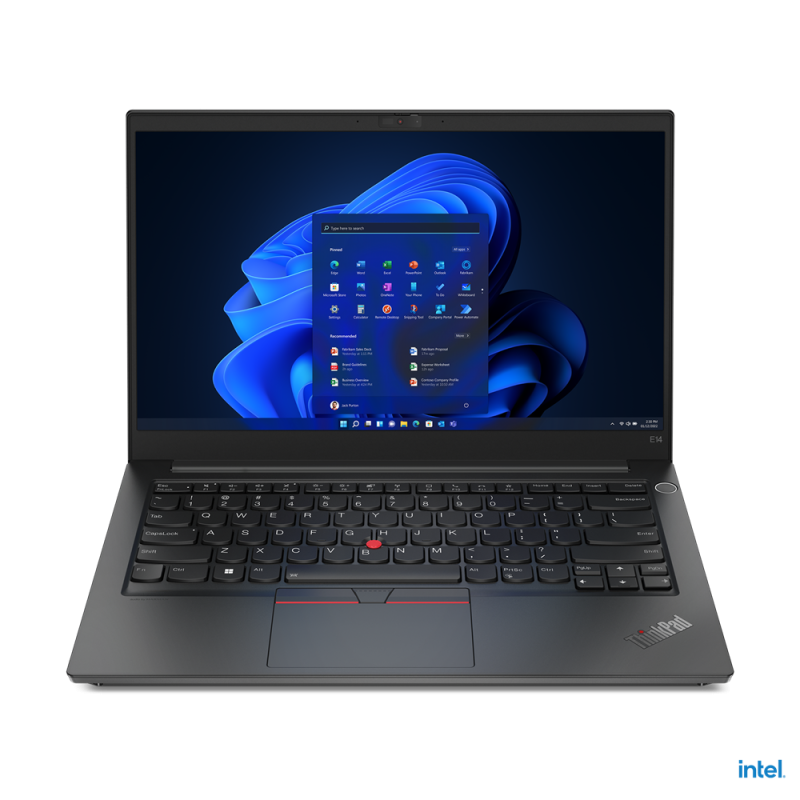

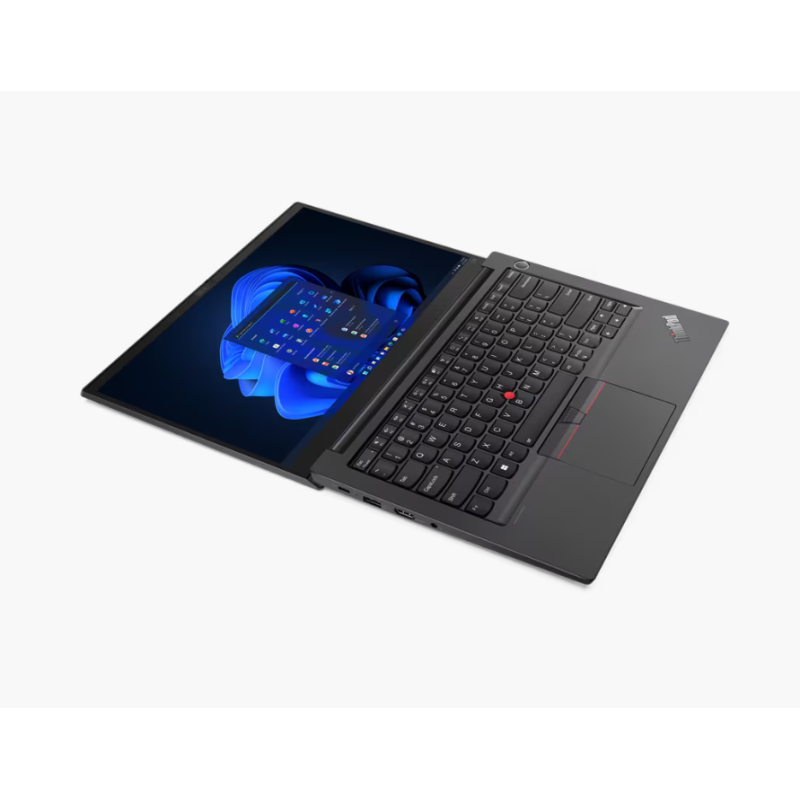

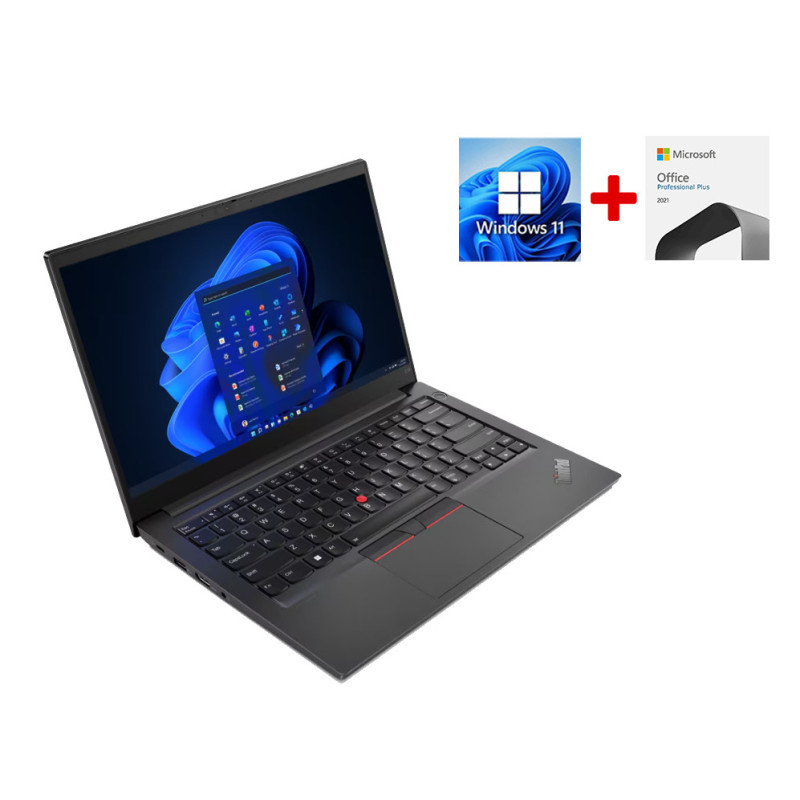

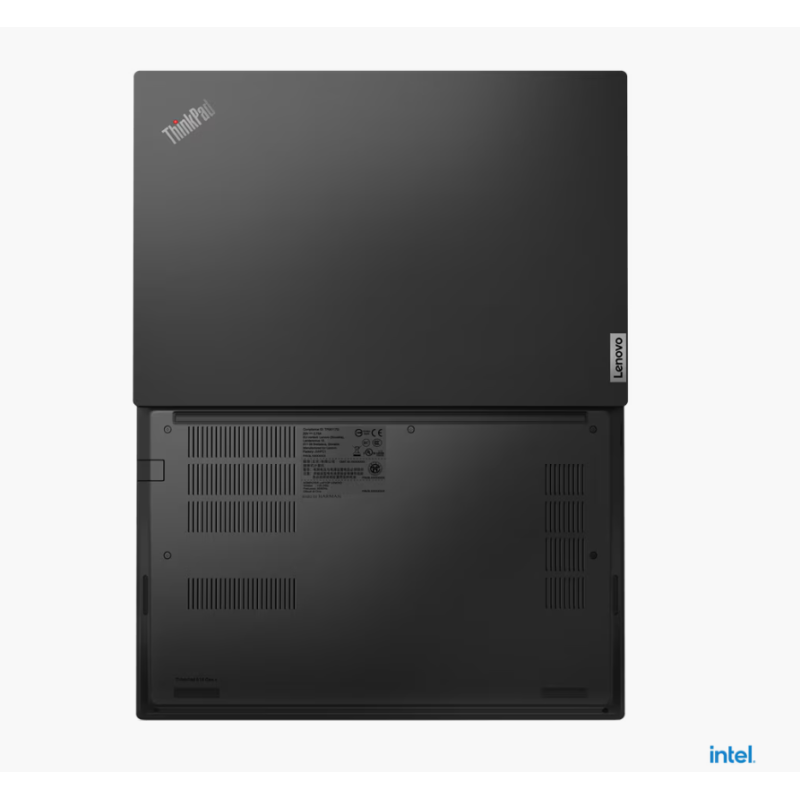

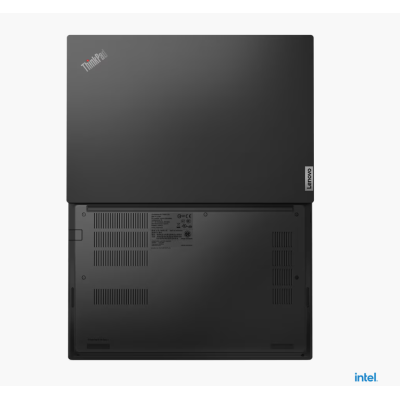

| ThinkPad E14 Gen 4 (Intel) |
| Model : 21E3009JGP |
| TopSeller |
Yes |
| Announce Date |
2022-04-05 |
| EAN / UPC / JAN |
0196800624598 |
| End of Support |
2028-12-17 |
| |
| PERFORMANCE |
| Processor |
Intel Core i7-1255U, 10C (2P + 8E) / 12T, P-core 1.7 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB |
| Graphics[1] |
Integrated Intel Iris Xe Graphics |
| Chipset |
Intel SoC Platform |
| Memory |
8GB Soldered DDR4-3200 + 8GB SO-DIMM DDR4-3200 |
| Memory Slots |
One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable |
| Max Memory |
Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200 |
| Storage |
512GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0 |
| Storage Support |
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB |
| Storage Slot |
Two M.2 slots
• One M.2 2242 PCIe 3.0 x4 slot
• One M.2 2242 PCIe 4.0 x4 slot |
| Card Reader |
No card reader |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek ALC3287 codec |
| Speakers |
Stereo speakers, 2W x2, Dolby Audio, audio by HARMAN |
| Camera |
FHD 1080p with Privacy Shutter |
| Microphone |
2x, Array |
| Battery |
Integrated 45Wh |
| Power Adapter |
65W USB-C (3-pin) |
| DESIGN |
| Display[2] |
14" FHD (1920x1080) IPS 300nits Anti-glare, 45% NTSC |
| Touchscreen |
None |
| Keyboard |
Non-backlit, English (UK) |
| Case Color |
Black |
| Case Material |
Aluminium (Top), Aluminium (Bottom) |
| Pen |
Pen Not Supported |
| Dimensions (WxDxH) |
324 x 220.7 x 17.9 mm (12.76 x 8.69 x 0.7 inches) |
| Weight |
Starting at 1.64 kg (3.62 lbs) |
| SOFTWARE |
| Operating System |
None |
| Bundled Software |
None |
| CONNECTIVITY |
| Ethernet |
100/1000M (RJ-45) |
| WLAN + Bluetooth[3] |
Wi-Fi 6E, 802.11ax 2x2 + BT5.1 |
| WWAN |
Non-WWAN |
| SIM Card |
None |
| NFC |
None |

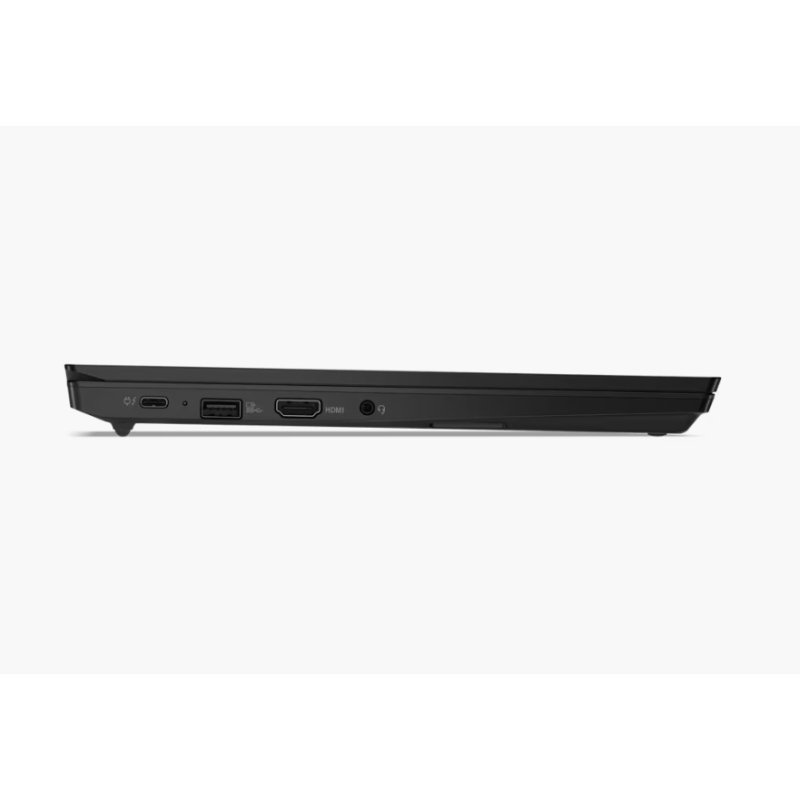

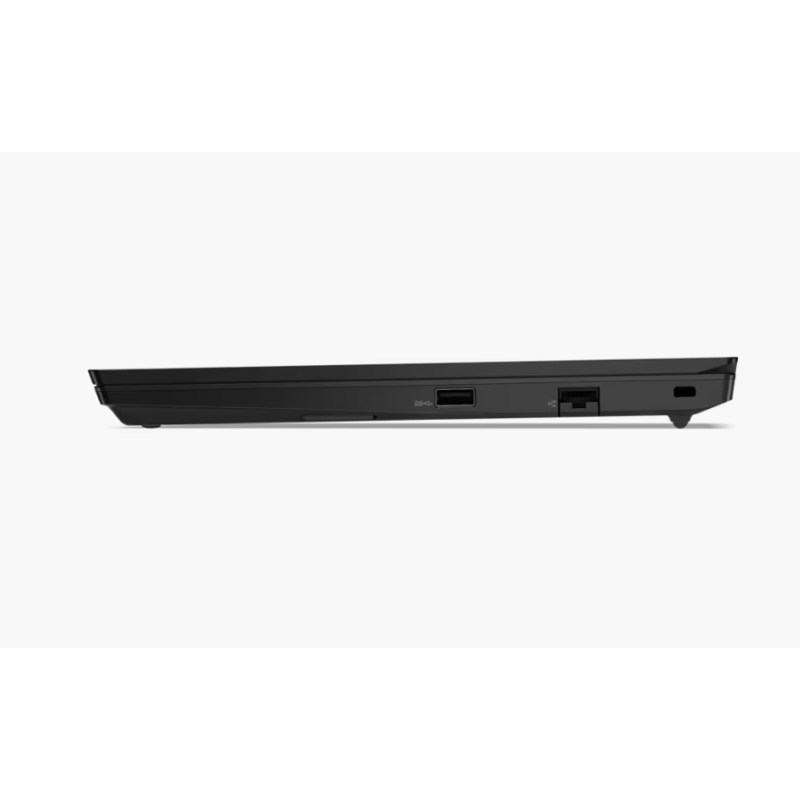

| Standard Ports |
1x USB 2.0
1x USB 3.2 Gen 1 (Always On)
1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4)
1x HDMI 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45) |
| Docking |
Various docking solutions supported via Thunderbolt.
For more compatible docking solutions, please visit <a href="https://smartfind.lenovo.com/accessories/#/search?categoryL1Name=Docking&categoryL2Names&pageIndex=1&pageSize=40&query=21E3" target="_blank"><u>Docking for ThinkPad E14 Gen 4 (Intel)</u></a> |
| Monitor Cable |
None |
| SECURITY & PRIVACY |
| Smart Card Reader |
None |
| Security Chip |
Discrete TPM 2.0 Enabled |
| Fingerprint Reader |
Touch Style, Integrated in Power Button |
| Physical Locks |
Kensington Security Slot, 3 x 7 mm |
| Other Security |
Camera privacy shutter |
| MANAGEABILITY |
| System Management |
Non-vPro |
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
None |
| ACCESSORIES |
| Bundled Accessories |
Lenovo 15.6" Laptop Casual Toploader, Grey |
| CERTIFICATIONS |
| Green Certifications |
ErP Lot 3
RoHS compliant
TCO Certified 9.0 |
| Other Certifications |
TÜV Rheinland Low Blue Light (Software Solution) |
| Mil-Spec Test |
MIL-STD-810H military test passed |
| |
|
| |
|
| |
|
| Recommended Services |
| Best |
3Y Premier Support Upgrade from 1Y Courier/Carry-in (5WS0T36151) |
| Better |
3Y Onsite upgrade from 1Y Courier/Carry-in (5WS0A23681) |
| Note |
| 1. Intel Iris Xe Graphics capability requires system to be configured with dual-channel memory. On the system with single-channel memory, Intel Iris Xe Graphics will function as Intel UHD Graphics. |
| 2. IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS. |
3. Wi-Fi 6E full features might be limited by country-level restrictions.
Wi-Fi 6E is only enabled on Windows 11 and operates as Wi-Fi 6 with Windows 10.
6GHz Wi-Fi 6E operation is dependent on the support of the operating system, routers/APs/Gateways that support Wi-Fi 6E, and the regional regulatory certifications & spectrum allocation. |
